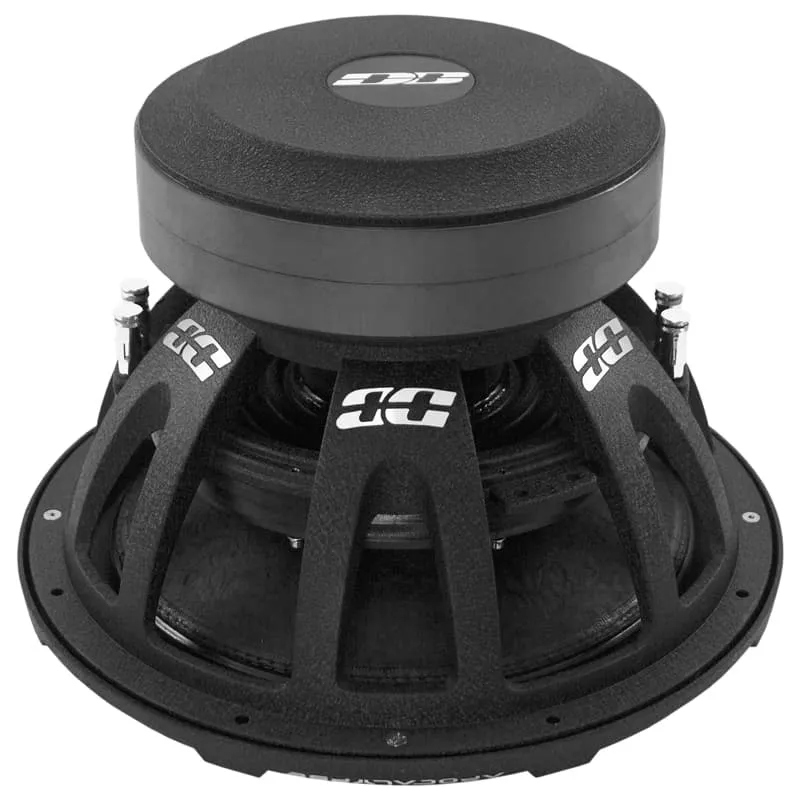

This is a first serial product specially designed for professional use in the street stock classes of SPL competitions, where is very important to achieve ideal balance between a high-power magnetic circuit and a lightweight moving system with a large effective cone area that provides a high sensitivity of the subwoofer. Literally, every part of this product was tested in real competition SPL systems, as a result of which we created a highly effective tool for achieving world records.
Size
15 inch
Voice coil size
4.00 inch
Cone
Paper
Magnet
Ferrite
Voice coil wire
CCAW
Surround
Foam
RMS Power
2400 W
MAX Power
4800 W
Frame
Alu
Impedance
1+1 Ohm
SPL
90.00 dB
Fs
42.00 Hz
Qts
0.45
BL
15.30
Re
0.5+0.5
Vas
31.42 L
Xmax
16.00 mm
Mounting depth
9.61 inch
Cut-out dimension
13.90 inch
Gross weight
70.55 lb (32.00 kg)
