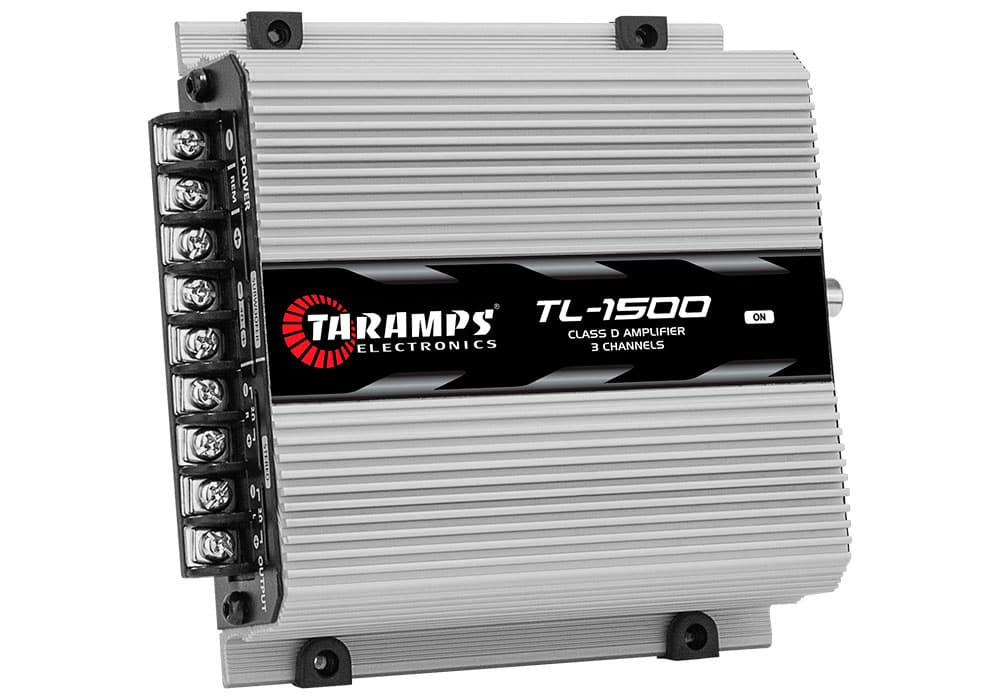

The TL 1500 Module Amplifier is designed with the highest technology and performance for automotive sound systems. It is stereo and its maximum power is 190Watts RMS with 2 OHMS impedance, and 2 95W RMS channels and 1 200W RMS channel to 4 OHMS SubWoofer. The TL 1500 is FULL RANGE this way you appreciate all the frequencies in the right measure.
Operation class
Class D
Number of Channels
03
Maximum power
@ 13,8 VDC - 2 OHMS 2 x 95W RMS (STEREO) @ 13,8 VDC - 4 OHMS 1 x 200W RMS (SUB)
Input Sensitivity
Input RCA = 320mV Wire Input = 6V
Signal to Noise Ratio
>90dB
Frequency response
Sub Output: 15Hz to 90Hz and its active frequency cut (12dB/8ª) Stereo Output L/R: 90Hz to 30kHz and its active frequency cut (12dB/8ª)
Bass Boost
Adjustable 0 to 10dB @ 50Hz
Efficiency
90%
Input Impedance
22K OHMS (RCA) 1K OHMS (WIRE)
Protection system
Thermal and Output Short
Min. Supply Voltage
9VDC
Maximum Power Supply Voltage
16VDC
Consumption at rest
0,75A
Maximum music consumption
17,5A
Maximum consumption in sinusoidal signal
35A
Dimensions (H x W x D) mm
134 x 42 x 144mm
Weight
0,60Kg
