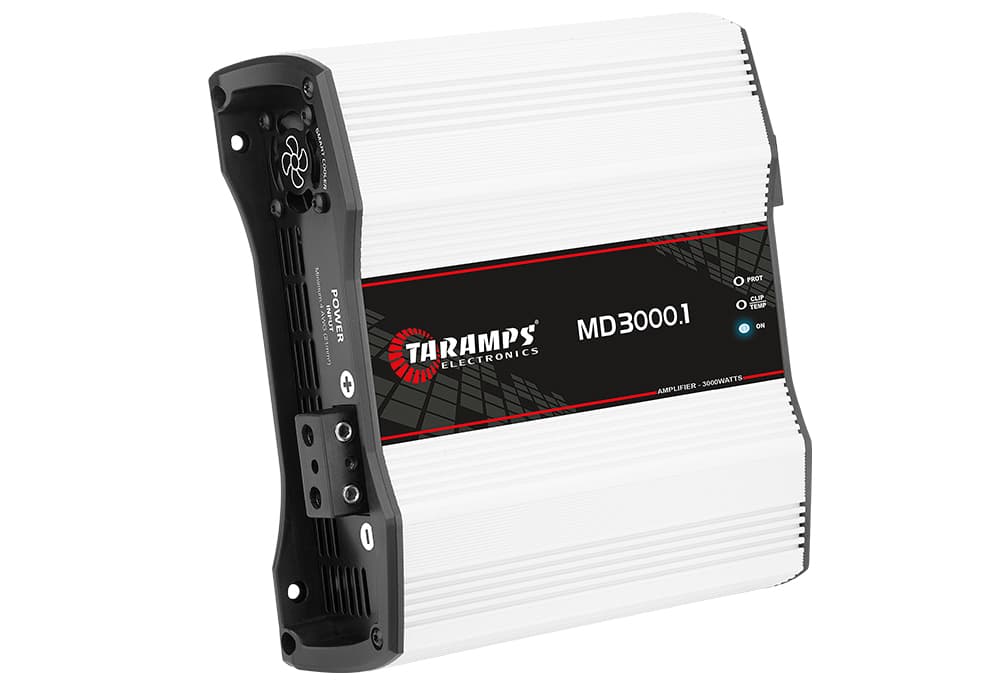

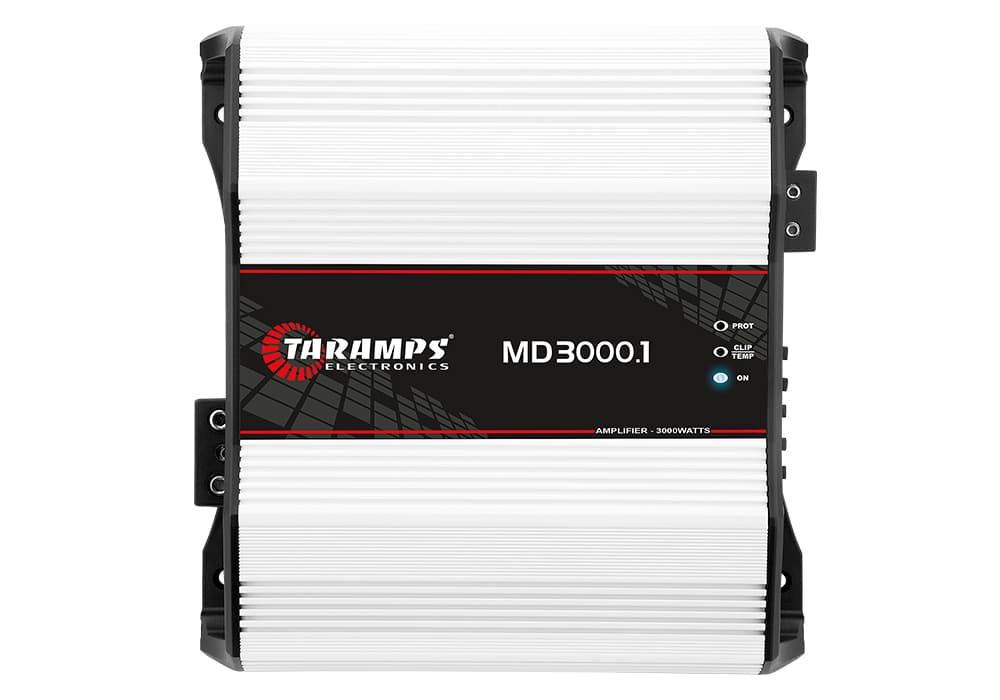

The MD 3000.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 3000W RMS with 1 OHM impedance, and one 3000W RMS channel. The MD 3000 is FULL RANGE this way you appreciate all the frequencies in the right measure.
Operation class
Class D
Number of Channels
01
Maximum power
@ 12,6 VDC - 1 OHM: 3000W RMS @ 12,6 VDC - 2 OHMS: 1920W RMS
Input Sensitivity
220 mV
Signal to Noise Ratio
>90dB
Frequency response
10Hz ~ 18KHz (-3dB)
Crossover high pass (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF)
90Hz ~ Full (-12dB/8ª) Variable
Bass Boost
0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)
Efficiency
79%
Input Impedance
22K Ohms
Output Impedance
1 OHM
Protection system
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
Min. Supply Voltage
9VDC
Maximum Power Supply Voltage
16VDC
Consumption at rest
1.0 A
Maximum music consumption
150 A
Maximum consumption in sinusoidal signal
300 A
Dimensions (H x W x D) mm
228 x 70 x 218mm
Weight
2.5Kg
