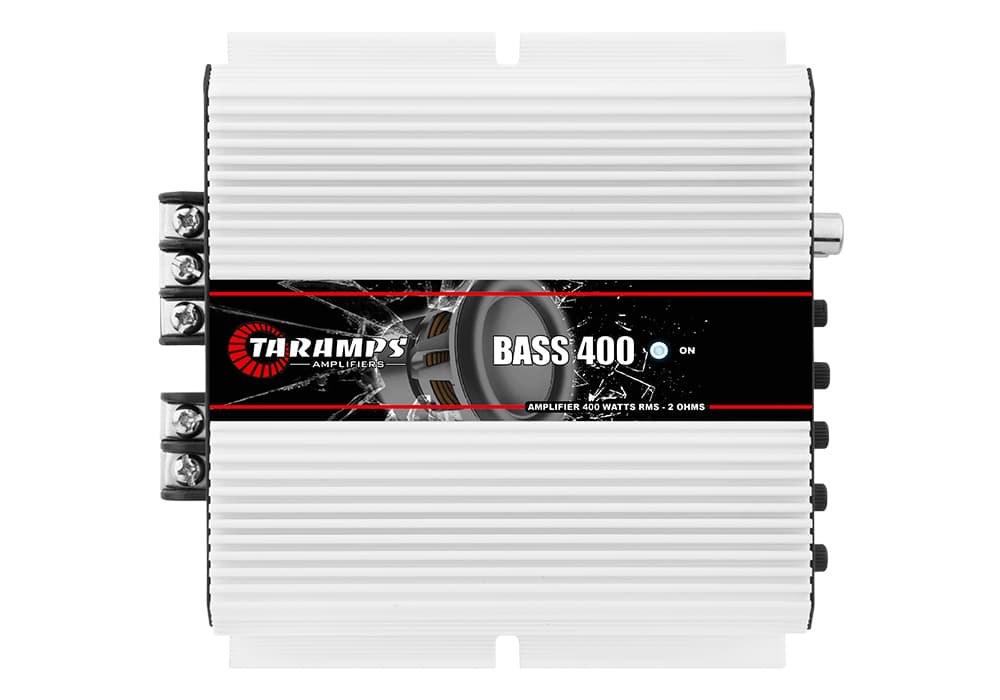

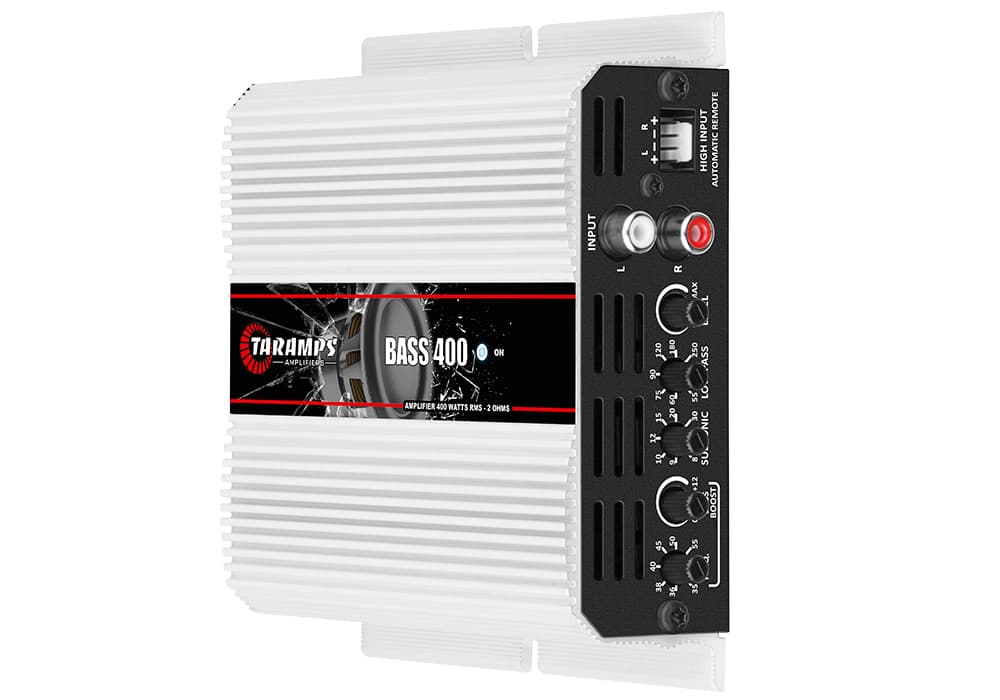

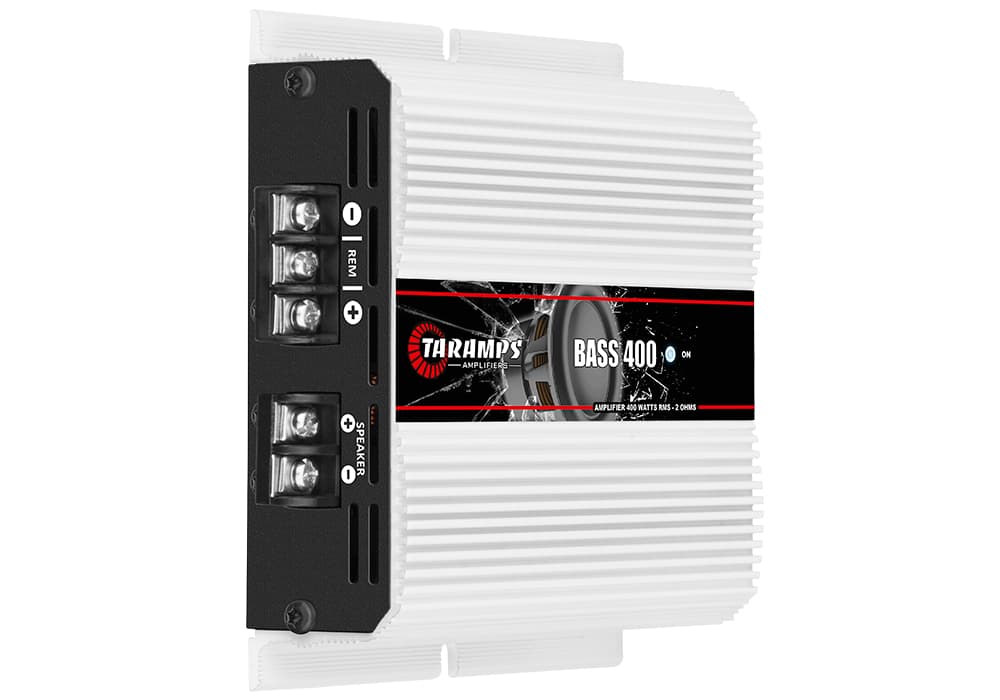

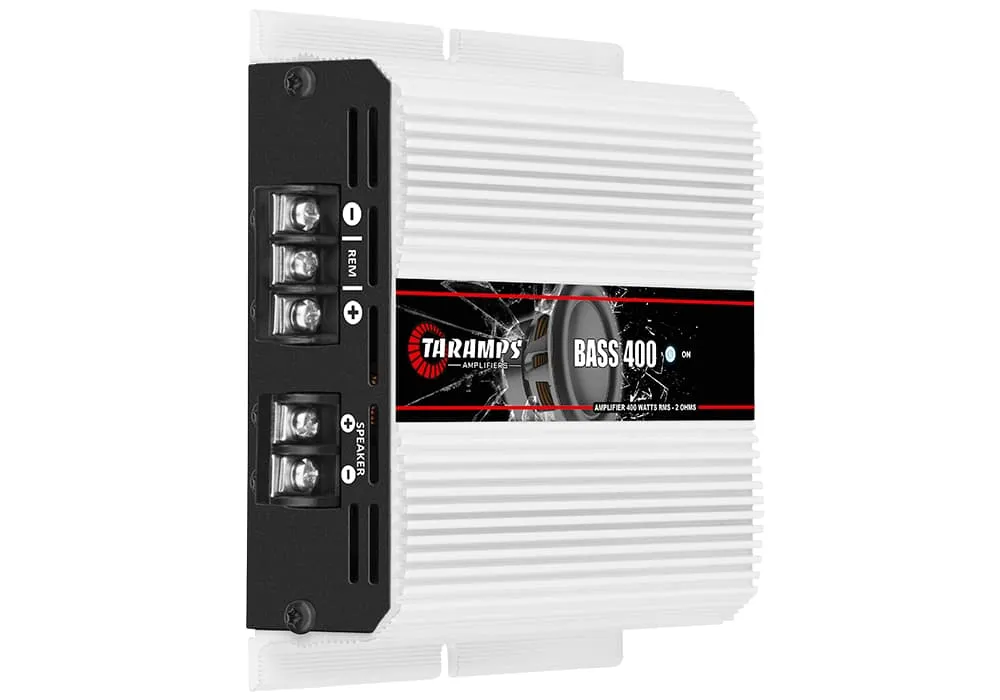

The Taramps BASS 400 amplifier module has been carefully developed with the highest technology, income and performance for automotive sound systems. Designed mainly for subwoofer and bass responses, that is, frequency responses in the range of 8Hz to 255Hz, it has a maximum power of 400 Watts in 1 channel of 2 ohms, with customized adjustments according to the size of the trunk and the frequency highlight of each vehicle, through the BASS BOOST and the option of choosing the central frequency, this product can offer much more, excessive displacement control, through the SUBSONIC FILTER, volume control and LOW PASS, to leave your bass on the right measure
Operation class
Class D
Number of Channels
01
Maximum power
@ 13.8 VDC - 2 Ohms: 400 Watts RMS @ 13.8 VDC - 4 Ohms: 214 Watts RMS
Input Sensitivity
320mV (RCA) - 6V (FIO) - LEVEL 100%
Signal to Noise Ratio
> 90dB
Frequency Response
8Hz ~ 255Hz (-3dB)
Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable
Crossover low pass (LPF)
55Hz ~ 250Hz (-12dB/8ª) Variable
Bass Boost
Parametric, Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +12dB
Efficiency
82%
Input Impedance
10K Ohms (RCA) / 1K Ohms (WIRE)
Output Impedance
2 Ohms
Protection system
Thermal Protection and Output Short Circuit
Min. Supply Voltage
8 VDC
Maximum Power Supply Voltage
16 VDC
Consumption at rest
0.5A
Maximum music consumption
@13.8 VDC - 17.5A
Maximum consumption in sinusoidal signal
35A
Dimensions (H x W x D)
5.28" x 1.57" x 5.43"
Weight
1.25lb
