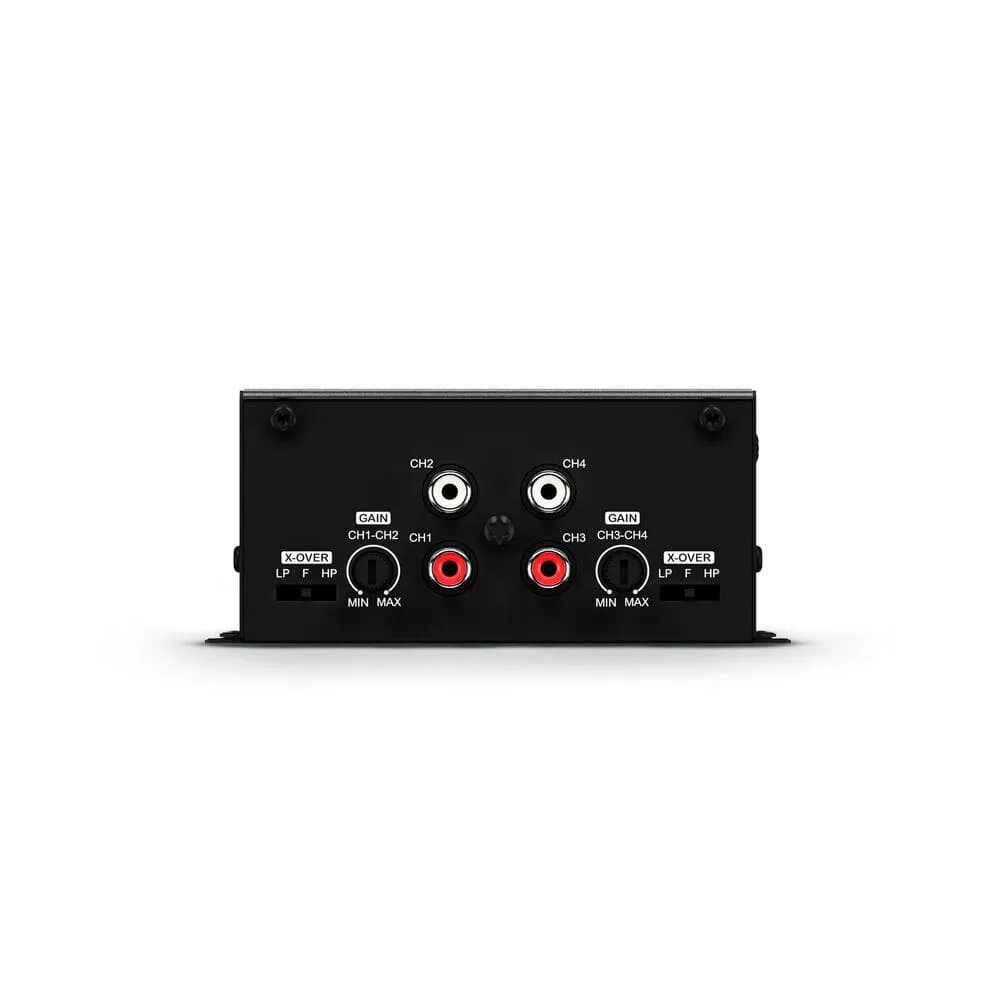

The 400.4 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  400.4 EVO6 – 4 OHMS

  Power @ 4Ω: 2 x 66W RMS
  Power @ 2Ω: 4 x 100W RMS

  Bridge Power @ 4Ω: 2 x 200W
  Bridge Power @ 2Ω: N/A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Frequency Response (-3dB):

  8Hz ~ 20kHzhttps://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

• Low Pass filter (12dB/octave):80Hz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  High Pass filter (12dB/octave):80Hz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Operating Voltage:9v-16v

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  SNR:94db

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Input Sensitivity (RCA):0.2v-2v

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Current Draw (music):20A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Current Draw (max.):40.5A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Total Efficiency:78%

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Damping Factor (@100Hz nominal impedance):200

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Power Cable:

  6mm² (9 AWG)

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Speaker Cable:

  2 x 1.5mm² (15 AWG)

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Recommended Fuse (music):25A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Recommended Battery (minimum):40Ah

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Width:

  3.4" / 8.6 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Length:

  4.2" / 10.7 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Height:

  1.8" / 4.6 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Weight:

  0,437 kg / 0.963 l
