Pioneer GM-DX874 4ch 1200W Class-FD
| High Resolution Audio | |
| Speaker line input sensor | Turn-on sensor |
| Variable LPF | |
| D-class | |
| Bass Boost Remote | |
| Channel(s) | 4 / 2 / 1 |

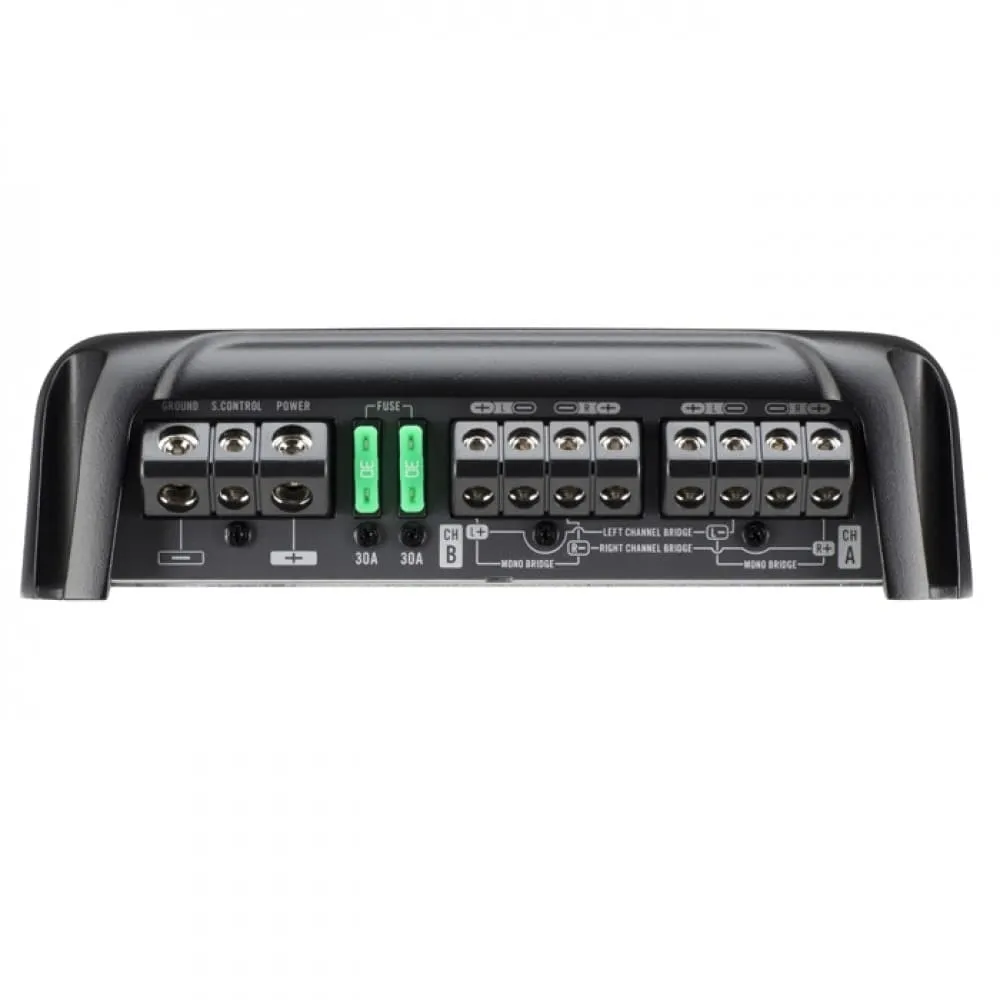

| Speaker Terminals | Block-type |
| Maximum power | 4 x 200W (4Ω) 4 x 300W (2Ω) 1200W Total |
| Continuous power output | 4 x 100W RMS (4Ω) 4 x 150W RMS (2Ω) 4 x 125W RMS (1Ω) 2 x 300W RMS (4Ω bridged) |
| Frequency response | 10 Hz - 50 Hz |
| Input level control | RCA (0.2V - 6.5V) SP (0.8V - 16V) |
| Distortion | < 0.05 % |
| S/N ratio | > 95 dB |
| Chassis size (W x H x D) | 252 x 60 x 215 mm |
| Unit weight | 2.5 kg |
| Bass Boost | Yes |
| Crossover Frequency | 40 - 500Hz (-12 dB/oct) Hz |
Audio
| Variable HPF | |
| RCA Terminals | |
| Low Pass Filter | |
| High Pass Filter |
