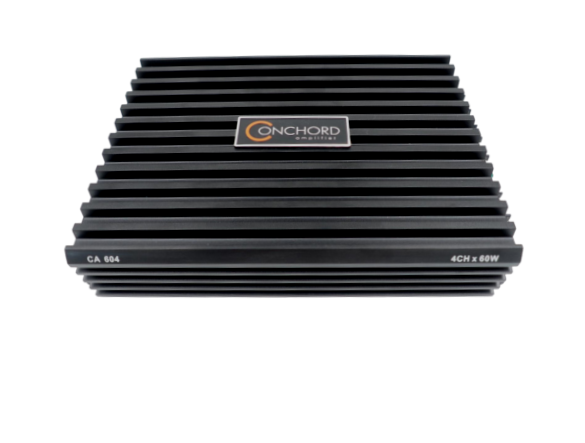

4-Channel Class A/B Analog Amplifier
Heavy Duty Aluminum Heat sink
Massive Terminals
Bottom panel with sturdy Mounting Brackets
MOSFET PWM-Power Supply, 3-way Protection Circuit
800 Watts Max. Output Power
4 x 120/200 Watts max. @ 4/2 Ohms
2 x 320 Watts max. bridged @ 4 Ohms
4 x 60/100 Watts RMS @ 4/2 Ohms
2 x 160 Watts RMS bridged @ 4 Ohms
Frequency Response 20Hz-20000 Hz
2 x HPF 50-5000 Hz
2 x LPF 40-4000 Hz
Bass-Boost 0-12 dB @ 45HZ
Dimensions: 230 x 56 x 320 mm
Efficiency up to 65%
Fuse:2x30A
Tested voltage & THD: 14,4v &Less than 1% THD
Operating voltage :9v to 15v
Input Sensitivity:200mV-6V
SIGNAL TO NOISE:>90dB
